A robust and stable power supply for your ABEM instruments

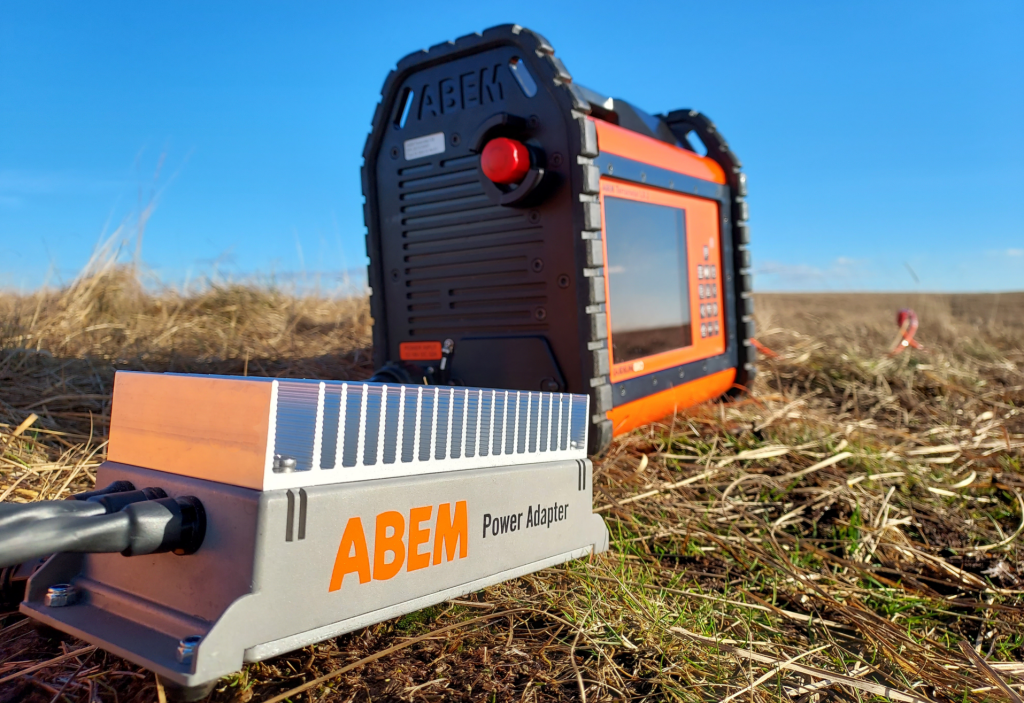

This powerful AC-DC adapter allows operators to run their ABEM instruments from an existing power network or a small ‘suitcase’-style generator. These generators weigh less than a typical high-capacity lead-acid battery, providing an option for prolonged power even in locations where recharging of batteries may be problematic. The ABEM Power Adapter is perfect for demanding field campaigns; it is fully waterproof and capable of providing a clean and stable 12V DC supply in excess of 30A from a 110V/230V AC (50 or 60Hz) source. It would also suit monitoring and other unattended applications where there would be little opportunity for changing over batteries.
In addition to the main power output, a waterproof auxiliary connector offers both 5V 2A and 12V 1A outputs, for custom accessories, plus an “operation OK” signal, useful for remote applications. There are two versions of the ABEM Power Adapter: one is compatible with the original Terrameter LS and Terraloc Pro, whilst the other is compatible with the current Terrameter LS 2 and Terraloc Pro 2.
Quick Specifications
| Input: | 90 – 260 V AC |
| 50Hz / 60Hz | |
| Output: | 12 V, 33 A, 400 W (primary) |
| 12 V, 1 A & 5 V, 2 A (auxiliary) | |
| Dimensions: | 212 x 83 x 71 mm (main body) |
| 2.2 kg | |
| Environmental: | IP67 |
| -20 to 70 °C | |
| Protection: | Input under-voltage |
| Output over-voltage | |
| Output over-current | |
| Output short-circuit | |
| Over-temperature |
