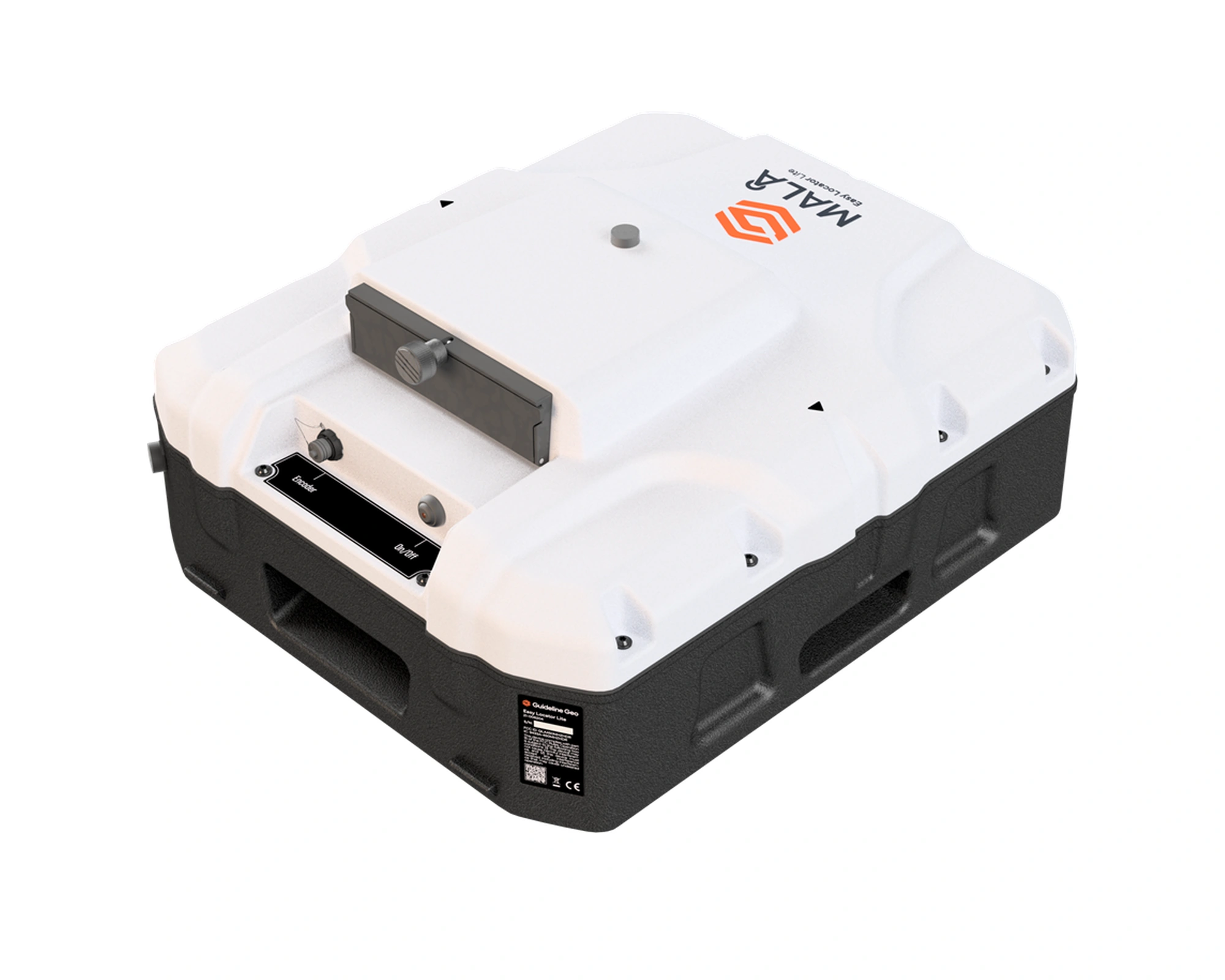

Affordable GPR for fast utility locating

MALÅ Easy Locator Lite is a cost-effective, easy-to-use ground penetrating radar for fast, confident utility locating and mark-out. Its focused workflow gives operators the information they need in real time without the complexity of a traditional data-collection system.

The system comes ready to work. Key GPR settings are set for utility locating, so operators can focus on detecting and marking buried utilities instead of survey setup, positioning, stored survey data or post-processing.

"We designed Easy Locator Lite around a simple idea: utility locators should be able to focus on finding what is underground, not on operating a complex survey system. By optimizing the GPR workflow for utility locating and adding real-time support from MALÅ AI, we’re making advanced GPR technology practical for a much wider range of operators."

Andreas Viberg, Product Manager MALÅ

Fast setup with real-time MALÅ AI support

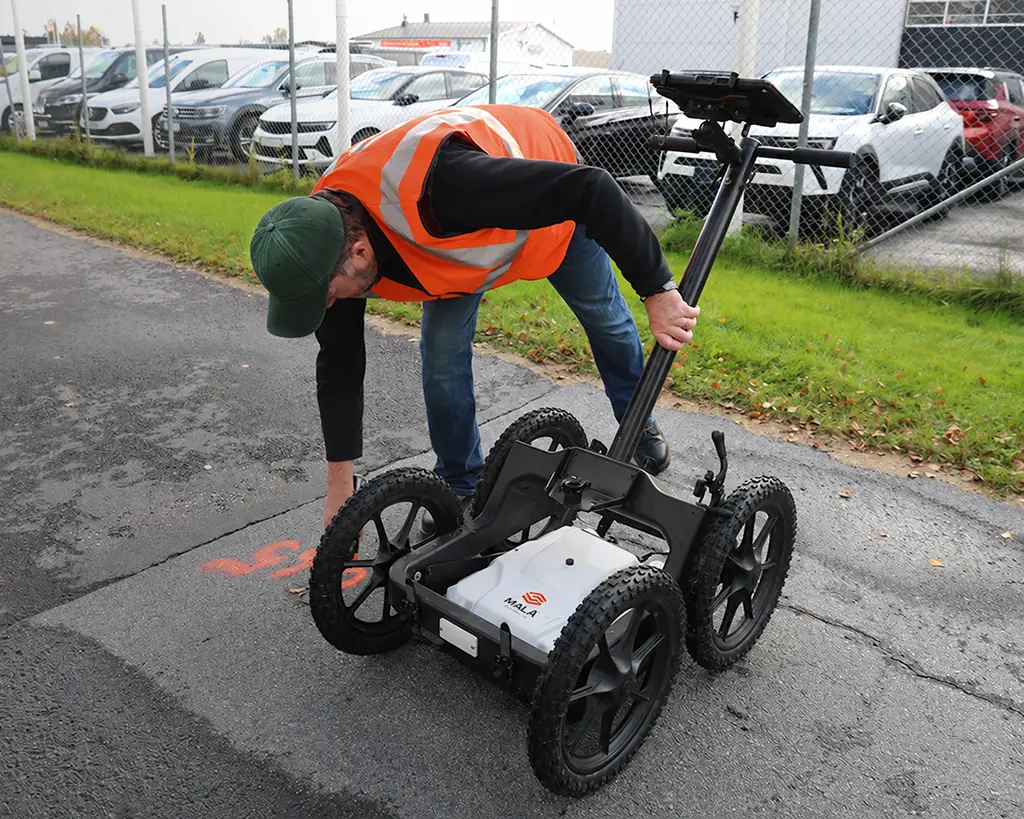

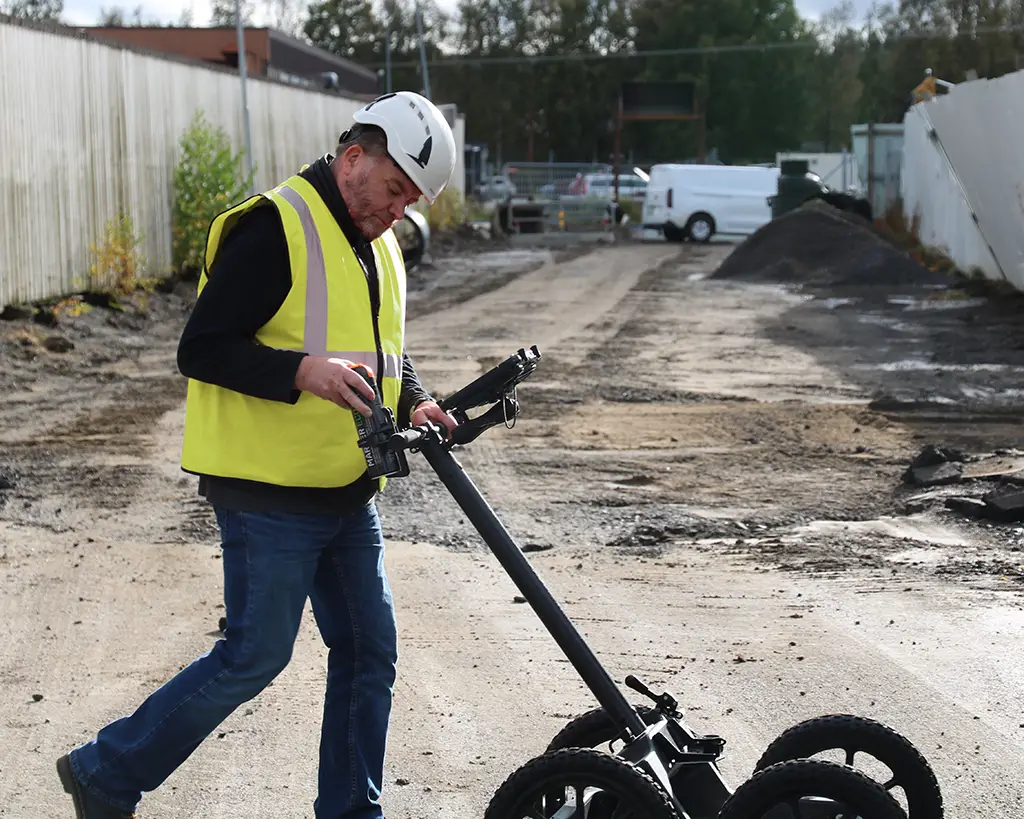

Easy Locator Lite reduces the number of setup decisions operators need to make in the field while real-time support from MALÅ AI helps operators spot potential targets as they scan. As a result, professional GPR technology is accessible to a wider range of utility locating teams. Then, operators can follow a straightforward workflow: arrive on site, scan the area, interpret potential targets and mark their location.

The workflow is simple and straightforward: Arrive on site, start scanning and review the live response on the screen, mark potential targets and move on to next section of the site. This clear, repeatable process supports both new and experienced operators, helping them stay focused on the task at hand: locating buried utilities.

Technical Specifications: Easy Locator Lite

Acquisition platform	Lite Controller
Recommended tablets	Samsung Galaxy Tab Active Pro 5G and Getac ZX-10
Artificial intelligence	Real-time MALÅ AI
Core technology	MALÅ HDR real-time sampling
Data output	32 bit
Operating time	> 8 hours (hot swappable batteries means you can keep on going. Technically)
Dimensions in operation	RTC Mini: 105 × 61 × 86 cm (41.3 x 24.2 x 34.1″)

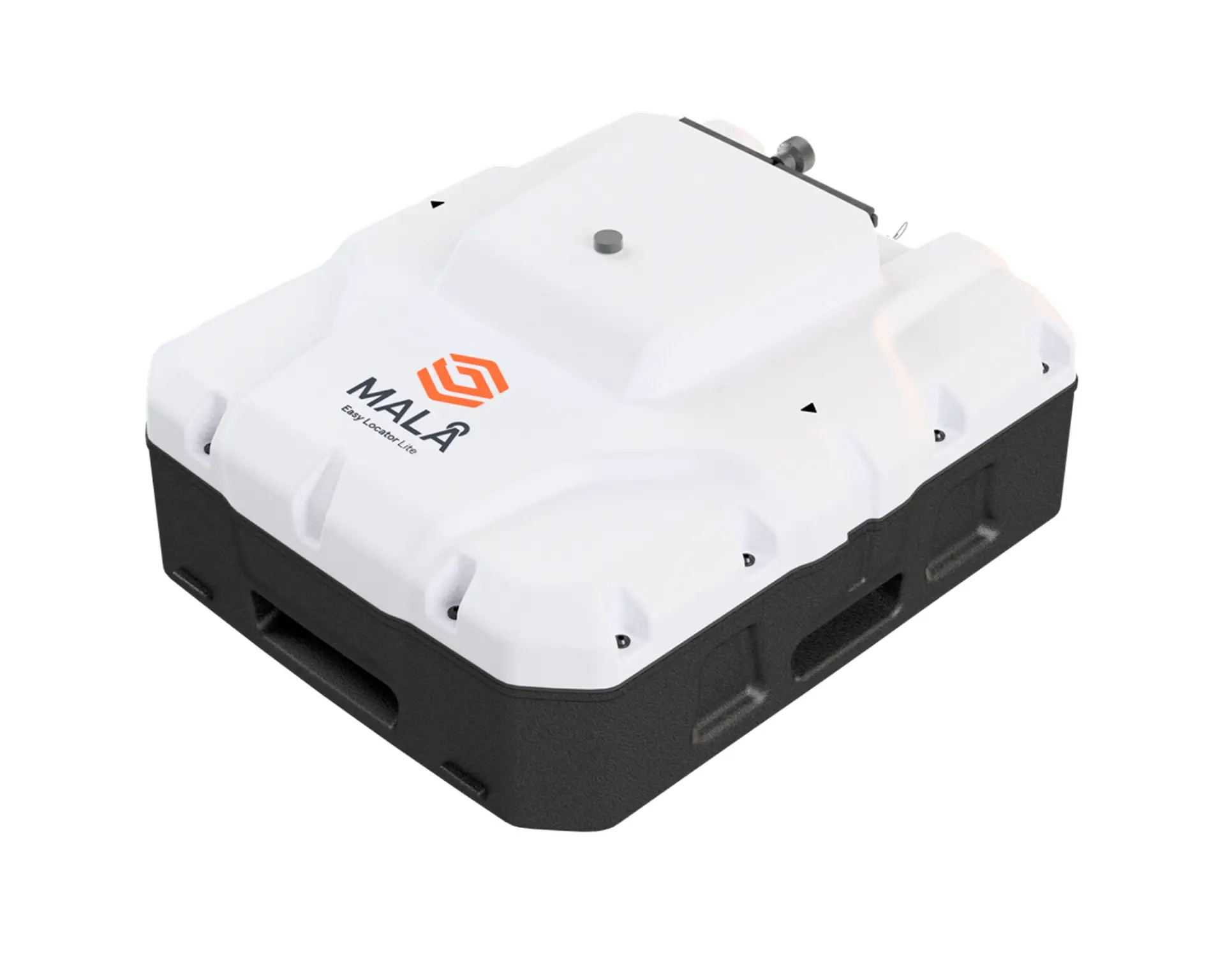

Antenna dimensions	21 x 44 × 37 cm (8.3 x 17.3 x 14.6″)
Complete system weight in operation	23.7 kg (52.3 lbs), including RTC Mini, antenna and two batteries – w.o. tablet
Antenna weight	5.5 kg (12.1 lbs), including two batteries
Environmental rating	IP65
Acquisition mode	Wheel-triggered acquisition
Antenna center frequency	450 MHz
Signal-to-noise ratio	More than 102 dB
Bandwidth	More than 121% fractional bandwidth at − 10 dB
Power supply	Dual interchangeable 12 V Li-ion batteries – hot-swappable
Rough-terrain capability	MALÅ Rough Terrain Cart Mini – standard

Frequently Asked Questions about Easy Locator Lite

Is Easy Locator Lite suitable for first-time GPR operators?

Yes. Easy Locator Lite is designed to make utility locating more accessible, with simple settings, a focused workflow, and real-time support from MALÅ AI to reduce complexity in the field. However, appropriate training and professional judgment remain important.

Can you hot swap batteries in the Easy Locator Lite?

Yes indeed, you can hot swap batteries just like with the EL Core, making sure you can keep surveying for as long as you wish without having to power down the system for a battery change.

Can the Easy Locator Lite be upgraded to an Easy Locator Core?

No, the Easy Locator Lite is a separate product, and since key hardware components differ from those of the Easy Locator Core, it will not be possible to upgrade it.

Will it be possible to pause and review the data? Or does the data “disappear” once it moves beyond the edge of the screen?

Yes, you can pause and review your data even after it has moved beyond the edge of the screen. Data and markers only disappear once you start a new profile. Until then, you can review your data or use the Resume button to continue measuring on the previous line. You can also use the tablet’s screenshot functionality to capture and share the data with others.

Is Easy Locator Lite an affordable GPR system?

Yes, Easy Locator Lite is a more affordable option in the Easy Locator family. It is designed for teams that need a professional GPR system for utility avoidance and mark-out, without paying for advanced surveying and project management features they may not need.

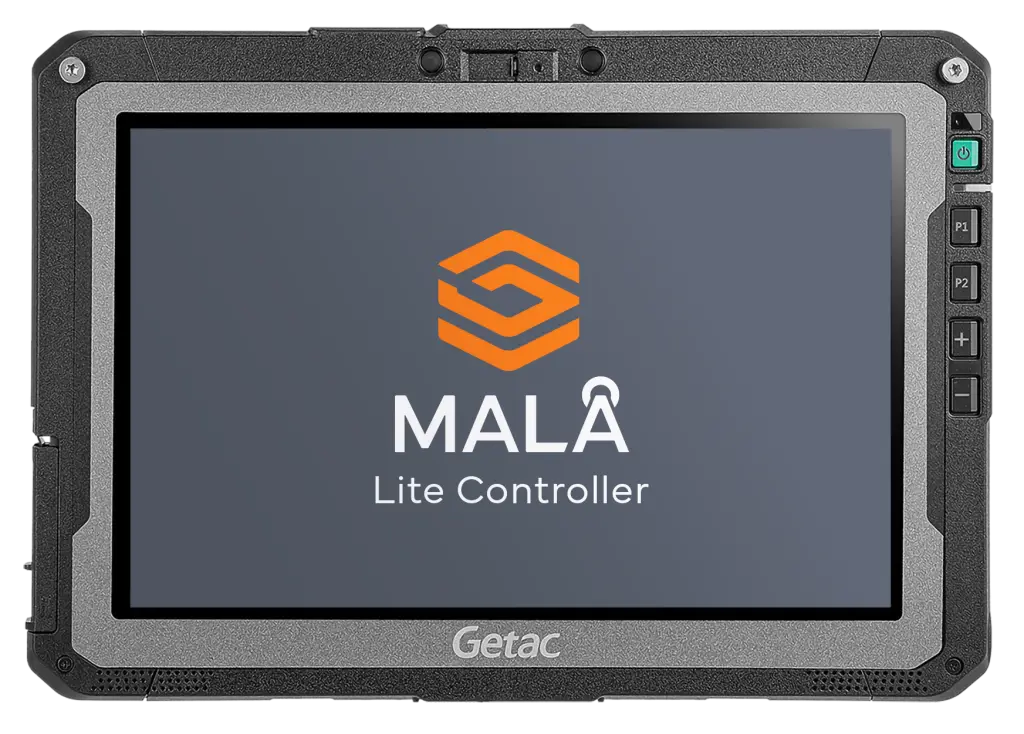

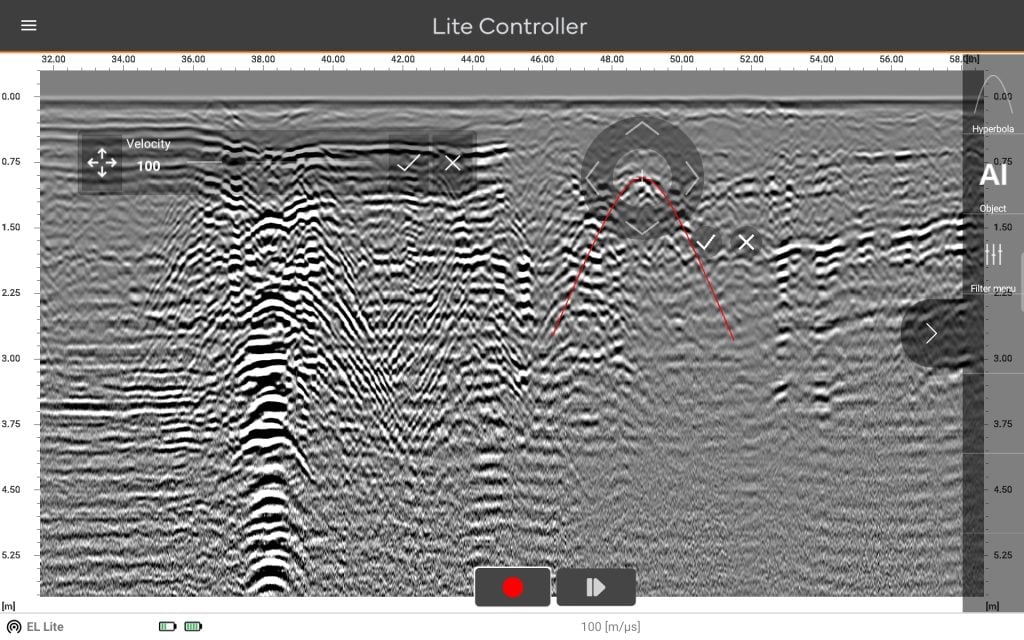

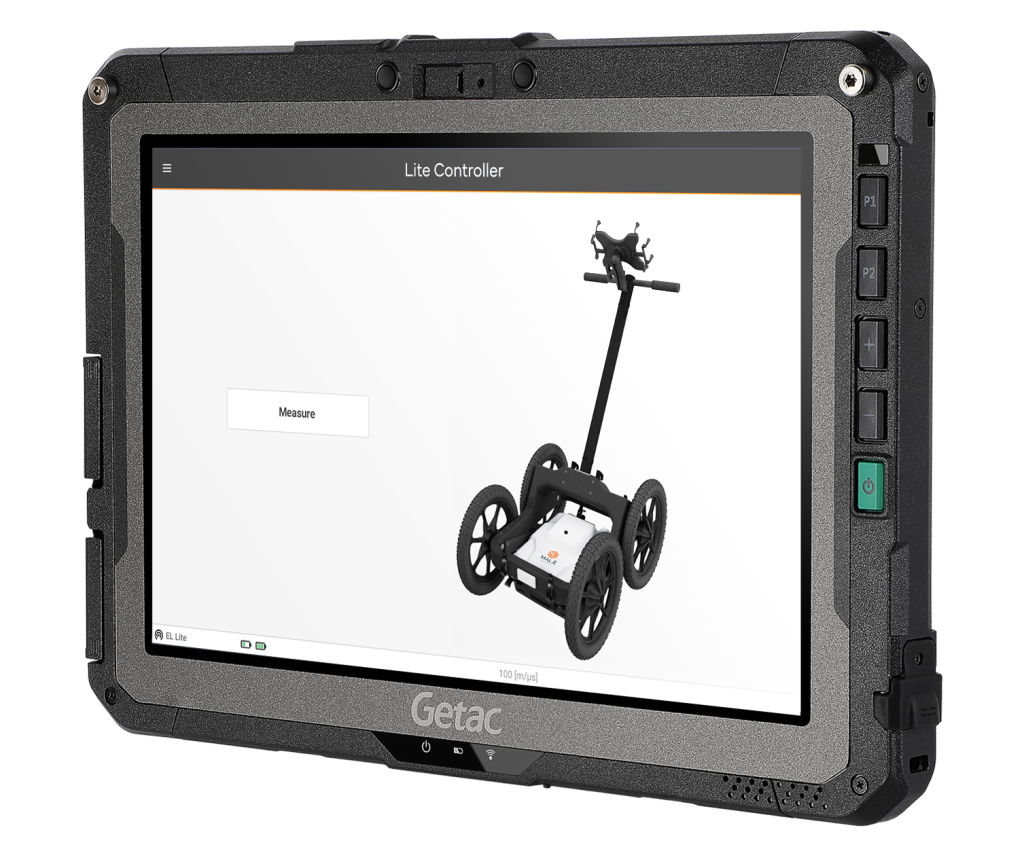

Dedicated software: Lite Controller

Purpose-built for efficient utility mark-out, Lite Controller gives operators a focused workflow from the moment they start scanning. Its clear, task-oriented interface helps operators view results in real time, identify potential targets and mark their locations without the complexity of a full survey workflow.

Applications

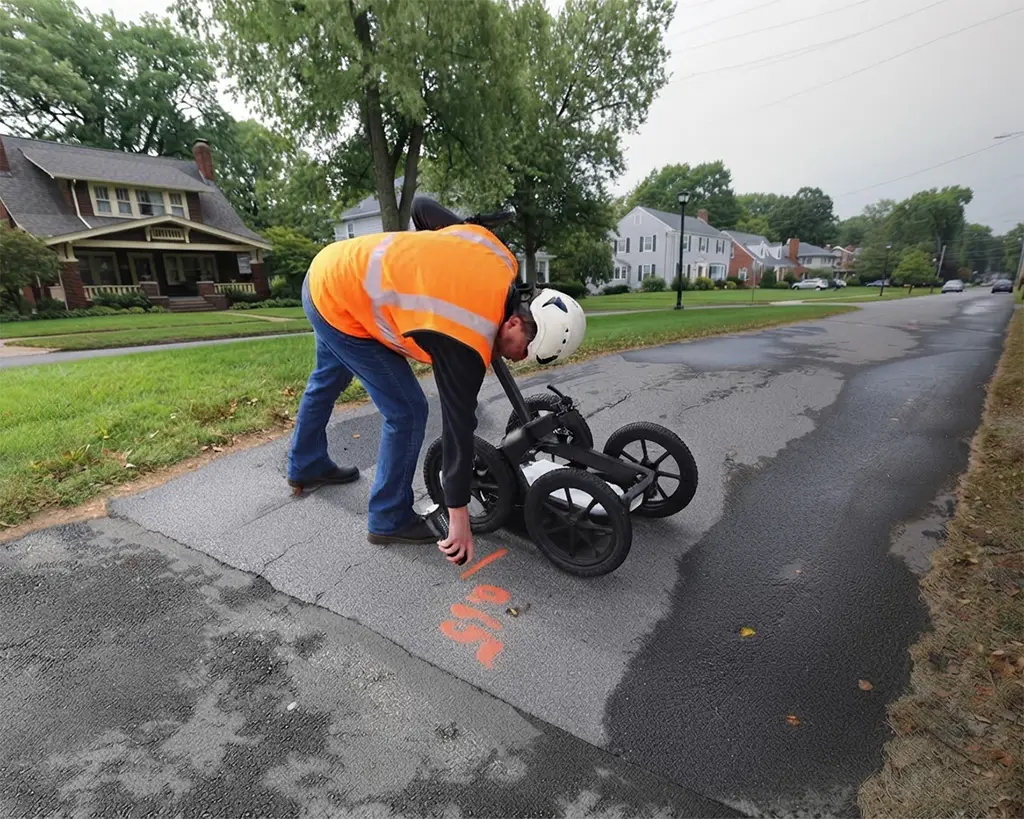

Avoidance

Easy Locator Lite is designed for rapid utility avoidance ahead of excavation. Its focused workflow and optimized settings help crews scan the area, interpret results and identify potential buried utilities without setting up a full survey project.

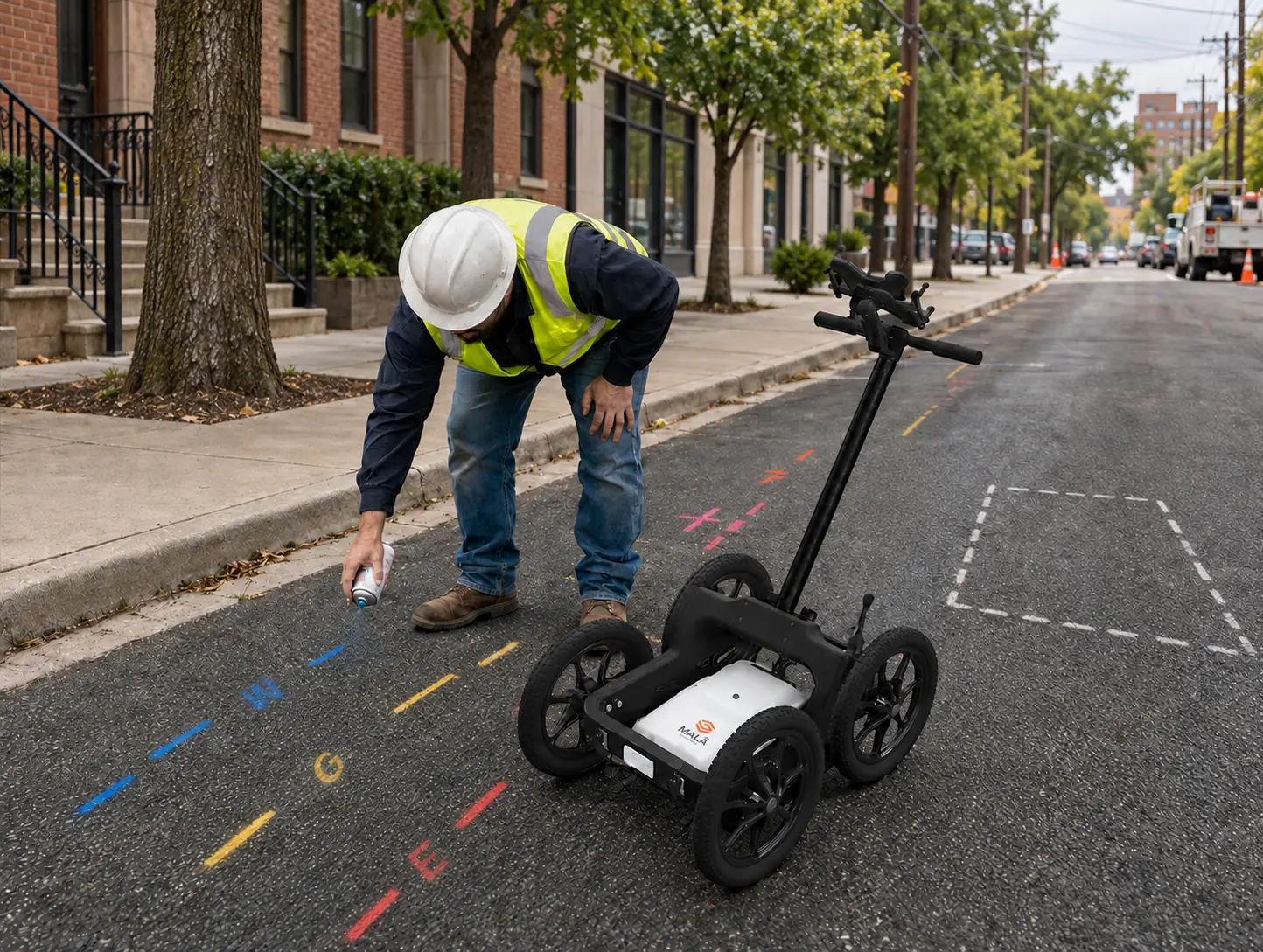

Mark-out

For straightforward utility mark-out, operators can view results in real time and use MALÅ AI support to help identify potential targets as they scan. This focused workflow helps operators locate and mark potential utilities efficiently in the field.

Features

Easy to learn and ready to work

Easy Locator Lite is designed around the field task – scan the area, interpret the response and mark potential buried utilities. The focused interface reduces setup steps associated with advanced survey projects.

Optimized for utility avoidance and straightforward mark-out
Ready-to-work locating workflow
Real-time results while scanning
Designed for new and experienced GPR operators

Optimized for utility locating

Key GPR settings are optimized for utility locating, helping operators concentrate on the site and the targets they need to find.

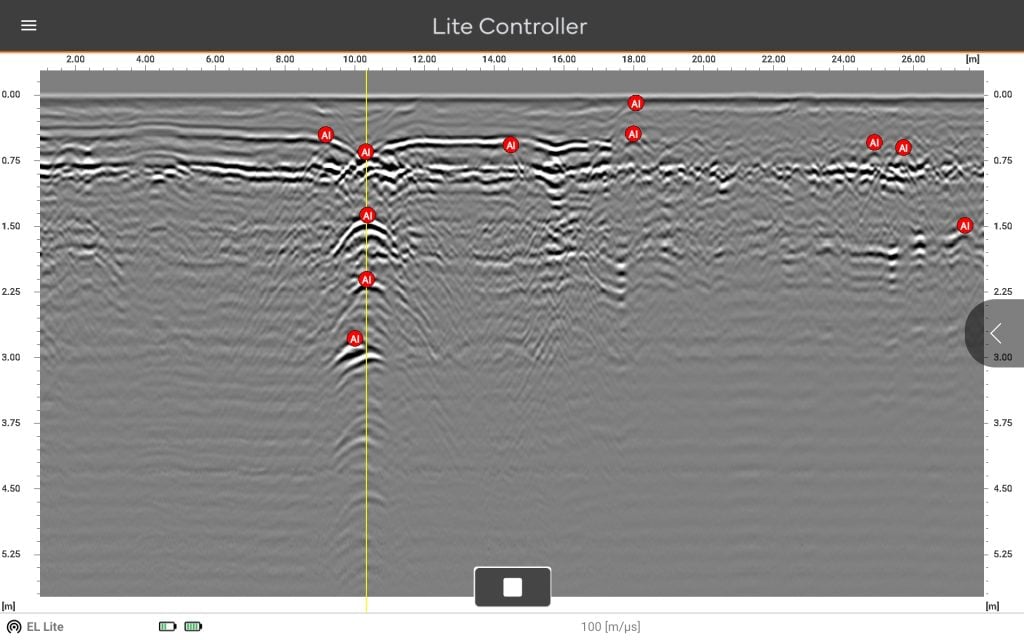

Real-time support with MALÅ AI

Real-time interpretation support

MALÅ AI highlights potential targets as data is collected, helping operators identify potential utilities in the field. Final interpretation and marking decisions remain with the operator.

A focused field workflow

Focused on the locating task

Easy Locator Lite presents the information needed for avoidance and straightforward mark-out without the complexity of a full survey workflow.

Professional GPR without unnecessary complexity

Professional GPR made more accessible

A focused feature set and straightforward operation make Easy Locator Lite a practical choice for teams seeking an affordable, easy-to-use GPR for everyday utility locating.

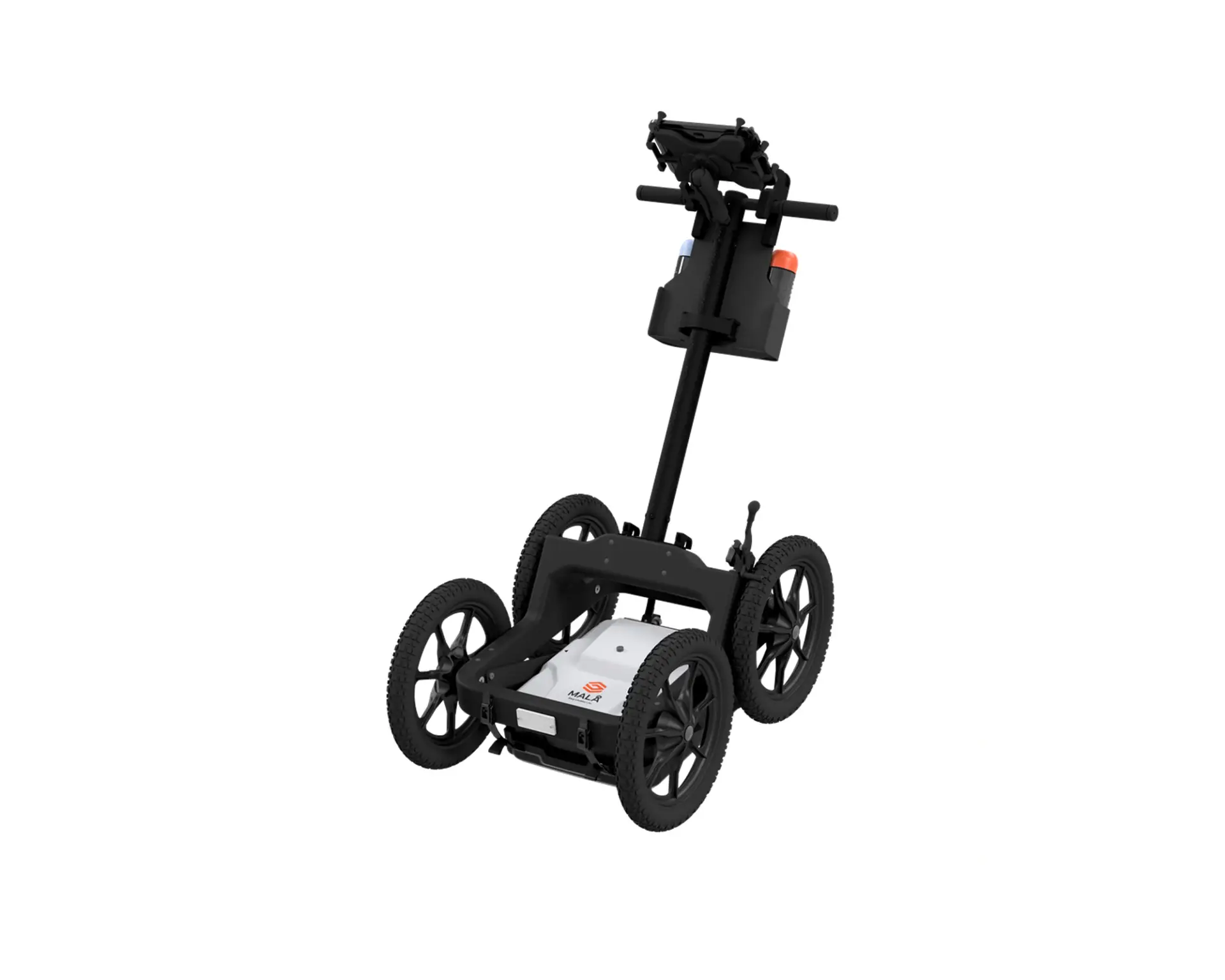

Designed exclusively for the MALÅ Rough Terrain Cart Mini

Rugged mobility as standard

MALÅ Easy Locator Lite is designed exclusively for use with the MALÅ Rough Terrain Cart Mini, providing a stable and durable platform for everyday utility locating.

Built for efficient transport, quick field setup and reliable movement across uneven ground, the cart helps crews get to work with minimal preparation. Combined with the focused Lite workflow, it provides a practical solution for utility locating across a range of field conditions.

MALÅ Rough Terrain Cart Mini included as standard
Built for demanding field conditions
Quick to set up and easy to transport
Stable operation across uneven and rough terrain

Which Easy Locator is right for you?

For a focused, accessible utility mark-out workflow, choose Easy Locator Lite. By contrast, choose Easy Locator Core when saved survey data, positioning and advanced project management are essential.

Easy Locator Lite is designed for quick, straightforward utility mark-out, while Easy Locator Core supports broader survey and project needs. Therefore, teams can choose the system that matches the job.

Easy Locator Lite – Streamlined essentials

Faster setup with preset survey settings
Tailored for utility mark-out and straightforward 2D project work
No SIM data plan, separate positioning equipment or post-processing subscription required
A more accessible price point

Shared measurement foundation

450 MHz antenna
MALÅ AI assistance
MALÅ RTC Mini compatibility
Set depth to known targets
Automatic and manual gain
Hyperbola fitting
Metric and imperial units
Selectable radargram colour palettes

Easy Locator Core – Full survey workflow

Save and export survey data
Internal and external GNSS support
Total-station compatibility
3D and baseline projects
Map view, markers and annotations
Advanced triggering and configurable survey settings
